KRES FF9 Full flow,dual interlock liquid cooling coupling
Main features:
100% full flow
Nominal diameter for FF9 is 21/32mm, providing an optimum flow rate and pressure drop ratio.
Dual interlock design
Dual interlock design avoid accidental disconnection, safe for your data.
Standard EPDM seal material, additional material available on request.
Standard body material: 304 stainless steel
Technical data:
FF9 1 inch technical data: |
Working pressure | 12bar/174psi |
Mini burst pressure | 24bar/348psi |
Flow rate | 175lpm/46gpm |
Fluid loss | 5.0cc Max. |
FF9 1.5 inch technical data: |
Working pressure | 12bar/174psi |
Mini burst pressure | 24bar/348psi |
Flow rate | (v=3m/s)145lpm/38gpm |
Fluid loss | 6.2cc Max. |
How to order?
FF9-25-B:
-25: 1 inch -38: 1.5 inch
-B: BSPP thread -C: chuck type -P: pagoda type

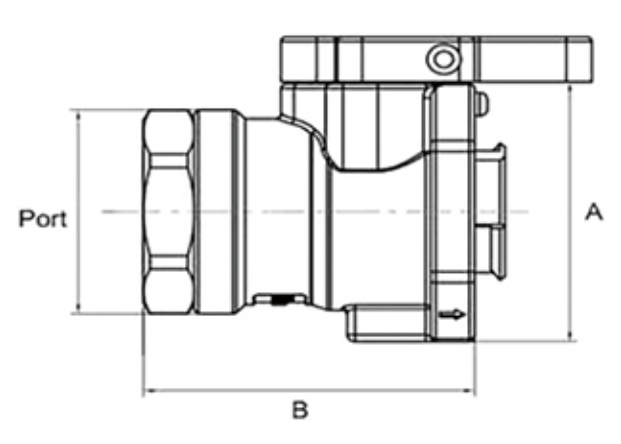

Part No. | Body size | Port size | Port type | A mm | B Mm | Port mm |
FF9-25-B | 1 inch | 1 inch | Female BSPP | 58 | 83.5 | 41 |
FF9-25-C | 1 inch | 1 inch | chuck type | 58 | 73 |
|
FF9-25-P | 1 inch | 1 inch | pagoda type | 58 | 81.1 |
|
FF9-38-B | 1.5 inch | 1.5 inch | Female BSPP | 77.5 | 95 | 62 |
FF9-38-C | 1.5 inch | 1.5 inch | chuck type | 77.5 | 88.5 |
|
FF9-38-P | 1.5 inch | 1.5 inch | pagoda type | 77.5 | 123.5 |
|
Note:
1. The order no. is for a single item.
2. Dimensions, threads and seals can be customized according to the minimum order quantity.
Operation:
1.Easy connection: Line up and rotate to connect
2.Opening the circuit: Rotate each handle a quarter to open the circuit
3. Closing the circuit: Rotate each handle to its original position to close the circuit
4.Safe disconnection: simply rotate to separate the two parts and now is no longer possible to open the circuit
Applications:
IDC liquid cooling connections, industrial fluid transfer.
